Inflatable Rubber Airbag Marine Ship Launching Air Balloon

Product Categories
Qingdao Jerryborg Marine Machinery Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Inflatable Rubber Airbag Marine Ship Launching Air Balloon

Brand Name : Jerryborg

Model Number : 1.2m*15m

Certification : ISO17357 CCS BV

Place of Origin : Shandong, China

MOQ : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000 pieces per year

Delivery Time : 10-20 work days

Packaging Details : nude packing

material : natural rubber

color : black

part : inflatable tool,pull ring

shape : cylindrical body

certificate : CCS,BV,LR,UKAS,ABS,ANAB

size : customized

warranty : 24 months

Price : negotiable

Contact Now

Marine Ship Launching Air Balloon Natural Inflatable Rubber Airbag Made In China

Ship Launching Air Balloon Description

Ship launching air balloon, also named roller bags or ship launching rubber balloon, was first invented for ship launching in 1981 in Jinan city of Shandong Province. Ship launching air balloons are accepted by more and more shipyards worldwide due to its’ advantage of saving labor cost and time, besides it’s easy to install and replace. Ship launching air balloons are widely used in ship launching, ship salvage, and other heavy weights lifting and moving.

Ship launching air balloons are composed of inner reinforced synthetic-tire-cord layers and outer rubber layers in the shape of cylindrical. Which is capable of high capacity against compression and twisting. Jerryborg supplies various sizes of ship launching air balloons depending on the customer’s request.

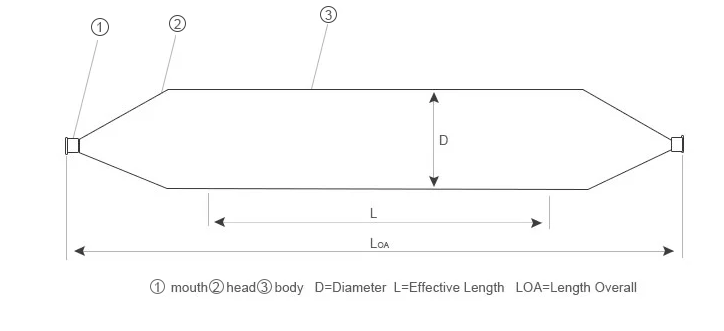

Constructions Of Ship Launching Air Balloon

  • Structure: outer rubber layer, inner rubber layer, synthetic tire cord layer
  • Cord layers: 4-10 layers
  • Shape: a cylindrical body, two heads
  • Accessories: pressure gauge, pull ring, three-way piece, ball valve, connecting pipe

Inflatable Rubber Airbag Marine Ship Launching Air Balloon

Ship Launching Air Balloon Application

  • Ship launching and upgrading
  • Ship salvage
  • Weight moving & lifting
  • Caissons lifting and floating
  • Pipeline blocking

Inflatable Rubber Airbag Marine Ship Launching Air Balloon

Ship Launching Air Balloon Advantages

  • Lightweight and easy to deploy
  • High capacity against compression and twisting
  • Big carrying capacity
  • Durable aging resistance and anti-wear characteristic
  • Beyond space limitation

Ship Launching Air Balloon Specification

Series Model Diameter(m) Working Pressure(Mpa) Working Height(m) Beating Capacity(Ton/m)
0.4D 0.5D 0.6D 0.4D 0.5D 0.6D
S1

S10

 0.8 0.20 0.32 0.40 0.48 15.1 12.6 10.0
1 0.16 0.40 0.50 0.60 15.1 12.6 10.0
1.2 0.14 0.48 0.60 0.72 15.8 13.2 10.6
1.5 0.11 0.60 0.75 0.90 15.5 13.0 10.4
S11 0.8 0.19 0.32 0.40 0.48 14.3 11.9 9.5
1 0.15 0.40 0.50 0.60 14.1 11.8 9.4
1.2 0.13 0.48 0.60 0.72 14.7 12.2 9.8
1.5 0.10 0.60 0.75 0.90 14.1 11.8 9.4
S12 0.8 0.24 0.32 0.40 0.48 18.1 15.1 12.1
1 0.19 0.40 0.50 0.60 17.9 14.9 11.9
1.2 0.16 0.48 0.60 0.72 18.1 15.1 12.1
1.5 0.13 0.60 0.75 0.90 18.4 15.3 12.2
1.8 0.10 0.72 0.90 1.08 17.0 14.1 11.3
S2 S20 1 0.24 0.40 0.50 0.60 22.6 18.8 15.1
1.2 0.20 0.48 0.60 0.72 22.6 18.8 15.1
1.5 0.16 0.60 0.75 0.90 22.6 18.8 15.1
1.8 0.13 0.72 0.90 1.08 22.0 18.4 14.7
2 0.12 0.80 1.00 1.20 22.6 18.8 15.1
S21 1 0.27 0.40 0.50 0.60 25.4 21.2 17.0
1.2 0.23 0.48 0.60 0.72 26.0 21.7 17.3
1.5 0.18 0.60 0.75 0.90 25.4 21.2 17.0
1.8 0.15 0.72 0.90 1.08 25.4 21.2 17.0
2 0.14 0.80 1.00 1.20 26.4 22.0 17.6
S22 1 0.31 0.40 0.50 0.60 29.2 24.3 19.5
1.2 0.26 0.48 0.60 0.72 29.4 24..5 19.6
1.5 0.20 0.60 0.75 0.90 28.3 23.6 18.8
1.8 0.17 0.72 0.90 1.08 28.8 24.0 19.2
2 0.15 0.80 1.00 1.20 28.3 23.6 18.8
2.5 0.12 1.00 1.25 1.50 28.3 23.6 18.8
S3 S30 1 0.35 0.40 0.50 0.60 33.0 27.5 22.0
1.2 0.29 0.48 0.60 0.72 32.8 27.3 21.9
1.5 0.23 0.60 0.75 0.90 32.5 27.1 21.7
1.8 0.19 0.72 0.90 1.08 32.2 26.8 21.5
2 0.17 0.80 1.00 1.20 32.0 26.7 21.4
2.5 0.14 1.00 1.25 1.50 33.0 27.5 22.0
For further information free to contact us.
